3.6kV 1 Phase Vacuum Contactor Rated Current 3200A
Product Details:
| Place of Origin: | china |
| Brand Name: | haibang |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Payment Terms: | Payment Terms: L/C, T/T, D/A, D/P |
|
Detail Information |
|||
| Frequency: | 50/60Hz | Type: | Single Phase |
|---|---|---|---|
| Highlight: | 3.6kV 1 Phase Vacuum Contactor,Plateau 1 Phase Vacuum Contactor |
||
Product Description

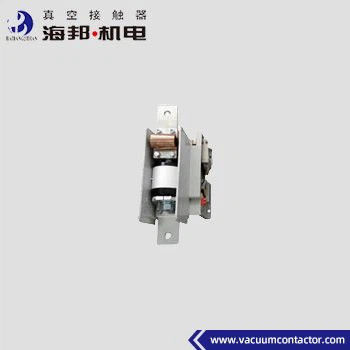

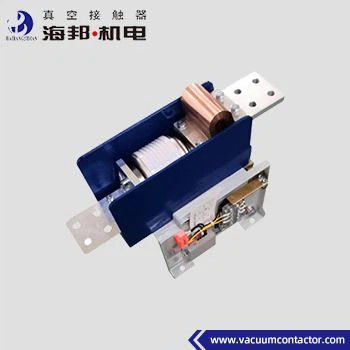

Hai Bang Single Phase AC Vacuum Contactors –Type CKJ1-3.6D/D3200 is suitable for AC 50~60Hz power systems, main circuit rated voltage 1140V-3.6kV, rated current 3200A. This type of Single Phase Vacuum Contactor is mainly used as a grounding switch when a single-phase ground fault occurs. Single Phase Vacuum Contactors are used in electrical occasions that require single-phase control. The altitude of the environment where the 3.6kV Single Phase Vacuum Contactor is used does not exceed 1000 meters above sea level.
Technical Data:
|
Name |
Unit |
Value | ||
|
Main circuit |
Rated working voltage (Ue) |
kV |
1.14-3.6kV |
|
| Rated working current (Ie) |
A |
3200 | ||
| Rated frequency (fr) |
Hz |
50~60 | ||
| Rated connecting capacity |
A |
4Ie (AC-4) | ||
| Rated breaking capacity |
A |
4Ie (AC-2) | ||
| Ultimate breaking capacity |
kA |
5 | ||
| Rated short time withstand current |
A/s |
4Ie/10 | ||
| Power frequency withstand voltage |
Wiring terminal to earth |
kV |
4.2 |
|
|
Vacuum breaks |
kV |
10 | ||
| Lightening impulse withstand voltage |
kV |
8 | ||
|
Control circuit |
Rated voltage (Us) |
V |
AC 110/220/380 |
|
| DC 110/220 | ||||
| Rated power (Ps)electric holding |
VA |
≤1000/100 (absorbing/holding) | ||
|
Auxiliary circuit |
Form |
(3a+2b) |
||
| Rated value | AC 380V/5A, | |||
| DC 380V/1A | ||||
|
Control circuit, auxiliary circuit to earth power frequency withstand voltage |
kV |
2 | ||
|
Rated operating frequency |
Long-term |
time/h |
300 |
|
|
Short-term |
time/h |
600 | ||
|
Mechanical endurance |
10000 times |
100 | ||
|
Electrical endurance |
10000 times |
25 (AC-2) | ||
|
Mechanical characteristics |
Closing time |
ms |
≤200 |
|
| Original opening time |
ms |
≤150 | ||
| Closing tripping |
ms |
≤5 | ||
|
Remark: Rated control voltage can be made according to customer’s requirements. |
||||
