1.14kV Low Voltage Single Phase Vacuum Contactor With Rated Insulation Voltage
Product Details:
| Place of Origin: | china |
| Brand Name: | haibang |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Payment Terms: | Payment Terms: L/C, T/T, D/A, D/P |
|
Detail Information |
|||
| Rated Frequency: | 50/60Hz | Type: | Single Phase |
|---|---|---|---|
| Highlight: | 1.14kV Single Phase Vacuum Contactor,Low Voltage Single Phase Vacuum Contactor,1.14kV Low Voltage Vacuum Contactor |
||
Product Description

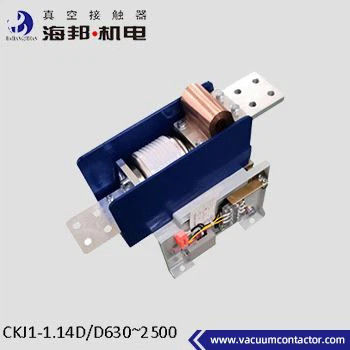

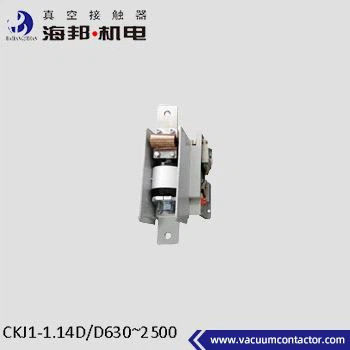

Hai Bang Single Phase 1.14kV Vacuum Contactor–Type CKJ1-1.14D/D630~2500 is suitable for AC 50~60Hz power systems, main circuit rated voltage 1140V, rated current 630~2500A. This type of Single Phase low voltage Vacuum Contactor is mainly used as a grounding switch when a single-phase ground fault occurs. Single Phase 1.14kV Vacuum Contactor is used in electrical occasions that require single-phase control. The altitude of the environment where the 1.14kV Single Phase Vacuum Contactor is used does not exceed 1000 meters above sea level.
Technical Data:
|
Name |
Unit |
Value |
||||
|
Main circuit |
Rated working voltage (Ue) |
V |
1140 |
|||
|
Rated working current (Ie) |
A |
630~ 2500 |
||||
|
Rated frequency (fr) |
Hz |
50~60 |
||||
|
Rated connecting capacity |
A |
4Ie (AC-4) |
||||
|
Rated breaking capacity |
A |
4Ie (AC-2) |
||||
|
Ultimate breaking capacity |
kA |
5 |
||||
|
Rated short time withstand current |
A/s |
4Ie/10 |
||||
|
Power frequency withstand voltage |
Wiring terminal to earth |
kV |
4.2 |
|||
|
Vacuum breaks |
kV |
10 |
||||
|
Lightening impulse withstand voltage |
kV |
8 |
||||
|
Control circuit |
Rated voltage (Us) |
V |
AC 110/220/380 |
|||
|
DC 110/220 |
||||||
|
Rated power (Ps)electric holding |
VA |
≤1000/100 (absorbing/holding) |
||||
|
Auxiliary circuit |
Form |
(3a+2b) |
||||
|
Rated value |
AC 380V/5A, |
|||||
|
DC 380V/1A |
||||||
|
Control circuit, auxiliary circuit to earth power frequency withstand voltage |
kV |
2 |
||||
|
Rated operating frequency |
Long-term |
time/h |
300 |
|||
|
Short-term |
time/h |
600 |
||||
|
Mechanical endurance |
10000 times |
100 |
||||
|
Electrical endurance |
10000 times |
25 (AC-2) |
||||
|
Mechanical characteristics |
Closing time |
ms |
≤200 |
|||
|
Original opening time |
ms |
≤150 |
||||
|
Closing tripping |
ms |
≤5 |
||||
|
Remark: rated control voltage can be made according to customer’s requirements. |
||||||
