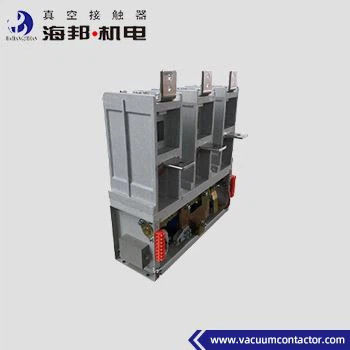

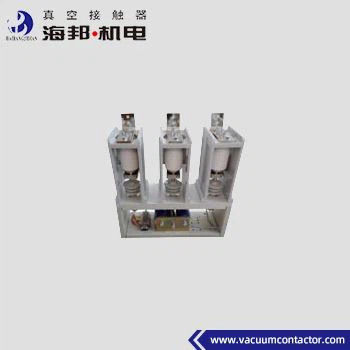

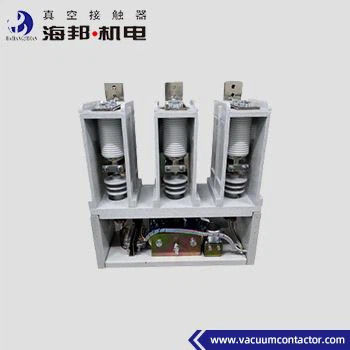

12kV Vacuum AC Contactor 1250A 50Hz - 60Hz Power Systems
Product Details:
| Place of Origin: | china |
| Brand Name: | haibang |
Payment & Shipping Terms:
| Delivery Time: | 7-15work days |
|---|
|
Detail Information |
|||
| Highlight: | 12kV Vacuum AC Contactor,Vacuum AC Contactor 1250A |
||
|---|---|---|---|
Product Description
Hai Bang 12kV Vacuum Contactor is applicable on AC 50-60Hz power systems, rated voltage 7.2kV and 12kV, rated operational current 800, 1000A, 1250A, 1600A, 2000A. This type of high voltage vacuum contactor is used to directly or remotely connect and disconnect the main circuit, and to control electrical equipment such as non-inductive AC motors and transformers. The altitude of the environment where the 12kV high voltage Vacuum Contactor is used does not exceed 1000 meters above sea level.
We have another type of 12kV Vacuum Contactor, whose rated current is 160A, 250A, 400A, 630A. Please refer to the categories for more information.
Types:
CKG8-7.2J/D-800-3.2
CKG8-7.2J/D-1000-10
CKG8-7.2J/D-1250-12.5
CKG8-7.2J/D-1600-12.5
CKG8-7.2J/D-2000-12.5
CKG8-12J/D-800-3.2
CKG8-12J/D-1000-10
CKG8-12J/D-1250-12.5
CKG8-12J/D-1600-12.5
CKG8-12J/D-2000-12.5
Technical Data:
|
Name |
Unit |
Value | |||
|
Main circuit |
Rated working voltage (Ue) |
kV |
7.2kV |
12kV |
|
|
Rated working current (Ie) |
A |
800, 1000A, 1250A, 1600A, 2000A | |||
|
Rated frequency (fr) |
Hz |
50~60 | |||
|
Rated connecting capacity |
A |
4Ie (AC-2) | |||
|
Rated breaking capacity |
A |
6Ie (AC-2) | |||
|
Rated short time withstand current |
A |
8Ie | |||
|
Rated peak withstand current |
A |
15Ie | |||
|
Ultimate breaking capacity |
A |
8Ie, 3times | |||
|
Rated short circuit duration |
s |
2 | |||
|
Power frequency withstand voltage |
Wiring terminal to earth |
kV |
32 |
42 |
|
| Vacuum breaks |
kV |
32 |
42 | ||
|
Lightening impulse withstand voltage |
kV |
60 |
75 | ||
|
Control circuit |
Rated voltage (Us) |
V |
AC 110/220/380 |
||
| DC 110/220 | |||||
|
Rated power (Ps)electric holding |
VA |
≤1000/100 (absorbing/holding) | |||
|
Rated power (Ps) mechanical holding |
VA |
≤900/600 (Closing/opening) | |||
|
Auxiliary circuit |
Form |
(3a+2b)~(6a+5b) |
|||
| Rated value | AC 380V/5A, | ||||
| DC 380V/1A | |||||
|
Control circuit, auxiliary circuit to earth power frequency withstand voltage |
kV |
2 | |||
|
Rated operating frequency |
Long-term |
time/h |
120 |
||
| Short-term |
time/h |
360 | |||
|
Mechanical endurance |
10000 times |
10 | |||
|
Electrical endurance |
10000 times |
25(AC-2) | |||
|
Mechanical characteristics |
Closing time |
ms |
≤200 |
||
|
3-phase asynchronous time |
ms |
≤3 | |||
|
Original opening time |
ms |
≤60 | |||
|
Closing tripping |
ms |
≤10 | |||
Remark: Rated control voltage can be made according to customer’s requirements.
