12kV 1000A Horizontal Vacuum Contactor 50Hz / 60Hz CKG8 Type
Product Details:
| Place of Origin: | china |
| Brand Name: | haibang |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Delivery Time: | 7-17work days |
| Payment Terms: | Payment Terms: L/C, T/T, D/A, D/P |
|
Detail Information |
|||
| Rated Frequency: | 50Hz/60Hz | ||
|---|---|---|---|
| Highlight: | 1000A Horizontal Vacuum Contactor,50Hz Horizontal Vacuum Contactor |
||
Product Description

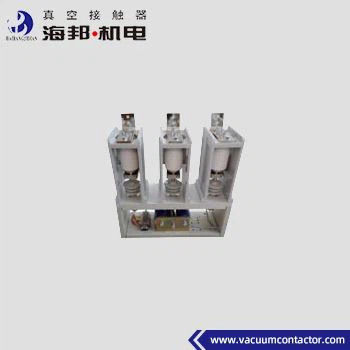

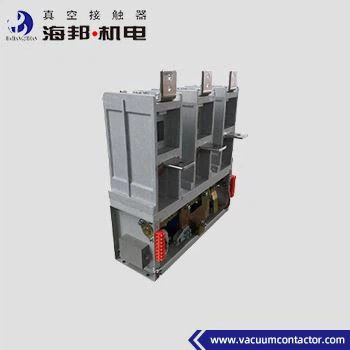

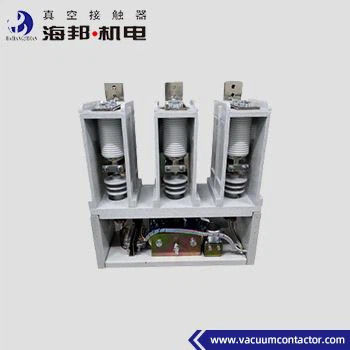

Hai Bang CKG8 type 12kV Vacuum Contactor is applicable on AC 50-60Hz power systems, rated voltage 7.2kV and 12kV, rated operational current 800, 1000A, 1250A, 1600A, 2000A. This type of high voltage vacuum contactor is used to directly or remotely connect and disconnect the main circuit, and to control electrical equipment such as non-inductive AC motors and transformers. The altitude of the environment where the 12kV high voltage Vacuum Contactor is used does not exceed 1000 meters above sea level.
We have another type of 12kV Vacuum Contactor, whose rated current is 160A, 250A, 400A, 630A. Please refer to the categories for more information.
Types:
CKG8-7.2J/D-800-3.2
CKG8-7.2J/D-1000-10
CKG8-7.2J/D-1250-12.5
CKG8-7.2J/D-1600-12.5
CKG8-7.2J/D-2000-12.5
CKG8-12J/D-800-3.2
CKG8-12J/D-1000-10
CKG8-12J/D-1250-12.5
CKG8-12J/D-1600-12.5
CKG8-12J/D-2000-12.5
Technical Data:
|
Name |
Unit |
Value | |||
|
Main circuit |
Rated working voltage (Ue) |
kV |
7.2kV |
12kV |
|
|
Rated working current (Ie) |
A |
800, 1000A, 1250A, 1600A, 2000A | |||
|
Rated frequency (fr) |
Hz |
50~60 | |||
|
Rated connecting capacity |
A |
4Ie (AC-2) | |||
|
Rated breaking capacity |
A |
6Ie (AC-2) | |||
|
Rated short time withstand current |
A |
8Ie | |||
|
Rated peak withstand current |
A |
15Ie | |||
|
Ultimate breaking capacity |
A |
8Ie, 3times | |||
|
Rated short circuit duration |
s |
2 | |||
|
Power frequency withstand voltage |
Wiring terminal to earth |
kV |
32 |
42 |
|
| Vacuum breaks |
kV |
32 |
42 | ||
|
Lightening impulse withstand voltage |
kV |
60 |
75 | ||
|
Control circuit |
Rated voltage (Us) |
V |
AC 110/220/380 |
||
| DC 110/220 | |||||
|
Rated power (Ps)electric holding |
VA |
≤1000/100 (absorbing/holding) | |||
|
Rated power (Ps) mechanical holding |
VA |
≤900/600 (Closing/opening) | |||
|
Auxiliary circuit |
Form |
(3a+2b)~(6a+5b) |
|||
| Rated value | AC 380V/5A, | ||||
| DC 380V/1A | |||||
|
Control circuit, auxiliary circuit to earth power frequency withstand voltage |
kV |
2 | |||
|
Rated operating frequency |
Long-term |
time/h |
120 |
||
| Short-term |
time/h |
360 | |||
|
Mechanical endurance |
10000 times |
10 | |||
|
Electrical endurance |
10000 times |
25(AC-2) | |||
|
Mechanical characteristics |
Closing time |
ms |
≤200 |
||
|
3-phase asynchronous time |
ms |
≤3 | |||
|
Original opening time |
ms |
≤60 | |||
|
Closing tripping |
ms |
≤10 | |||
Remark: Rated control voltage can be made according to customer’s requirements.
